Application Note- 302

How to select an Electronic Load

`Prodigit provides a very flexible range of Plug-in Electronic Load module and Mainframe to meet your testing requirements. Plug-in Electronic Load units have power rating from 75W to 300W. Modules are installed from the front of the m-ainframe.`

`Selecting an Electronic Load module:`

`The 3310 series has CC, CR, CV, dynamic and short modes, it is most commonly used for R&D, Quality control, and ATE systems. The 3320 series has CC, and short mode, it` `is suitable for inspection, production, and burn-in.`

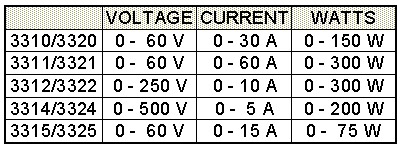

`Voltage/Current and Wattage ratings for the 3310 and 3320 series modules are shown in the specification chart below.`

`Determine power requirements in watts and use the above table to determine which module(s) is (are) required. For example: a 12V 20A power supply would require a 300W module. A dual output power supply would require two modules.`

`The lower current rating in the 3310 and 3320 series Electronic Loads provides higher programming resolution and minimizes load noise effects to a power supply. Load noise order figures are listed below:`

`Selecting the proper mainframe:`

`For single load applications select Prodigit's 3302 Mainframe. This mainframe accepts all 3310 and 3320 series plug-in modules. For two or more loads requiring dynamic load testing, the 3300A mainframe should be selected. The 3300A accepts up to four 3310 series plug-in modules.`

`The 3301 Mainframe should be used for static load testing. It accepts up to four 3320 series plug-in modules. Selecting the proper mainframe: For single load applications select Prodigit's 3302 Mainframe. This mainframe accepts all 3310 and 3320 series plug-in modules.`

`Note:`

The 3300A Mainframe has both GPIB/RS232C interface with Listen/Talk capability. The 3301 Mainframe has GPIB Master/Slave interface with Listen. There is no GPIB programmability if a 3310 series Plug-in unit is used in a 3301 Mainframe. Only front panel manual control is functional in this case. The Master/Slave function in the 3301 mainframe functions with only one GPIB address. To control up to eight plug-in modules there is a Master / Slave cable to connect a Master 3301 Mainframe to a Slave 3301 Mainframe. In this case, only one GPIB cable and GPIB address is required. Please refer to the 3301 Mainframe operating manual for more detailed information.

`The 3302 single Mainframe accepts all 3310/3320 series Electronic Load Plug-in units with GPIB. The GPIB function is Listen/Talk for 3310 series and Listen only for 3320 series Plug-in units.`

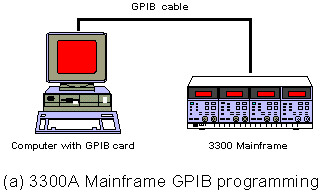

`3300A Mainframe GPIB programming`
`All 3310 series Electronic Load module can be loaded into a 3300A mainframe in any combination.`
`GPIB: LISTEN/TALK Capability.`

`3300A Mainframe RS232C programming`
`All 3310 series Electronic Load module can be loaded into a 3300A mainframe in any combination. RS232C : SETTING/READ BACK Capability. 3300A Mainframe RS232C programming All 3310 series Electronic Load module can be loaded into a 3300A mainframe in any combination. RS232C: SETTING/READ BACK Capability.`

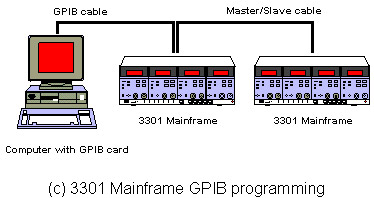

`3301 Mainframe programming`
`All 3320 series Electronic Load module can be put into the 3301 mainframe in any combination. One GPIB address can control up to eight load modules if master/slave cable is used.`
`GPIB: LISTEN only.`

3302 Mainframe GPIB programming:
All 3310 and 3320 series Electronic Load modules can be put into the 3302 mainframe. GPIB: LISTEN only for 3320 series. LISTEN/TALK for 3310 series.

Note:TheGPIB card suppliers below meet Prodigit's GPIB protocol requirements.

1. National Instrument (U.S.A).
2. Hewlett Packard (U.S.A.).
3. I/O Tech. (U.S.A.).
4. Capital Equipment Corp.(U.S.A.).
5. Advantek (TAIWAN).
6. Axion Tech. (TAIWAN).
7. Electronics Tech. (TAIWAN).
8. ines GmbH (GERMANY).In addition some provide:

a) GPIB Analysis Function.
b) Digital I/O port capability
c) Software driver for windows TM environment.
d) C, PASCAL, BASIC language support.
