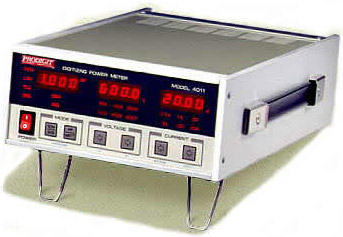

4010A/4011A Digitizing Power Meter GPIB

Real Time Digital Sampling

4010A 300V/20A/ 6000W
4011A 600V/20A/12000W

*Application Notes
The Basic of Power Meter

4010/4011 Digitize Meter Improvements   description

4010A/4011A Digitizing Power Meter GPIB
S.M.P.S.
UPS.
Ballast and Lamp.
Home Appliance.
ATE system.
Green Computer/Monitor.
Computer peripheral.

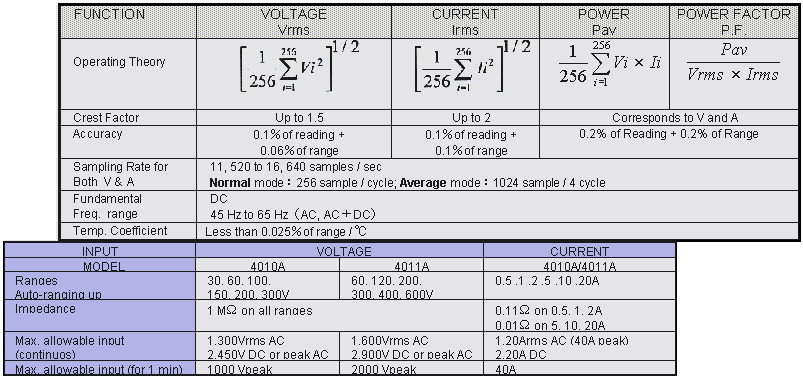

Digital RMS for Vrms and Arms.
Digital Integration for Watt and PF.
0.1% High Accuracy.
V/A/W/PF display.
1Year Calibration Cycle.
Panel Calibration.
AC power: 115/230Vac ± 10%, 50/60Hz.
Weight: Approx.4.5Kg.
Dimension: 221Wx88Hx325Dmm.










The 4010A/4011A were designed utilizing voltage and current digital sampling , digital root mean square, and digital Integration .There are six Voltage and Current ranges providing high resolution and accuracy of V/A/W/PF reading. Utilizing internal high speed/Accuracy A/D, CPU, and EEPROM, the 4010A/4011A quickly provide accurate test readings.



AC power cord 1pc.
AC Line Test Adaptor 1pc.
Lug/Hook Terminal 2pcs.
Operation Manual 1pc.

1 Meter GPIB Cable
2 Meter GPIB Cable
