Two Load unit in one Module Voltage/Current source SMPS transient response Current limit testing and battery emulation Battery charger Battery discharge R&D, Quality Control ATE system Production testing
Compatible with 3300 series Mainframe CC, CR, CV, Dynamic, Short Mode Dual 4 1/2 V / A Meter on each module 150 memory on 3300C Mainframe Protections against V, I, W, and °C
Mainframe: 3300C for Manual and Remote 3302C for Manual and Remote. Cooling : Advanced Fan Cooled. Weight : 3.5 Kg/Module. Dimension : 108Wx143Hx405Dmm. (3330A)
Power Supply testing Fixture for PC power supply testing

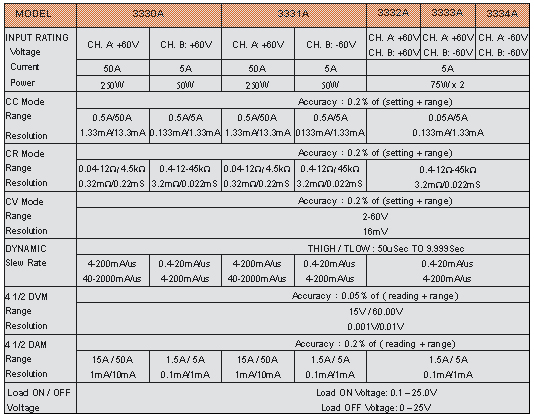

3330A series Dual Load Module has two Electronic Load, which are used with the 3302C and 3300C Mainframes, but can't used with the 3302 mainframe.
Each 3330A Series Module has its own control and display panel, CC/CR/CV/Dynamic modes, 150 Store/Recall and last setting memory which provides load set-up more efficiently.
Programmable Load ON/OFF voltage, GO/NG meter check is suitable for varios applications.
Two Load unit in one Module
