AC / DC , DC / DC, Testing SMPS Transient Response Battery Charger Battery Discharge R&D, QC ATE System

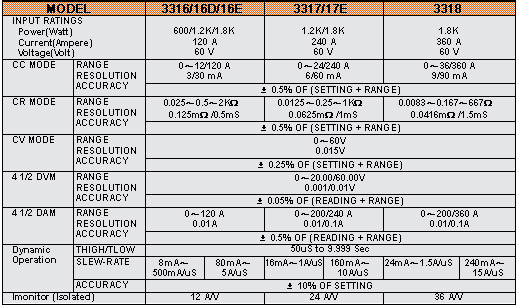

CC, CR, CV, Dynamic SHORT Mode LED 4 1/2 V/A Meter Last Setting Memory Five Memory Protections against V, I, W, and °C
Power: 115V/230Vac 10% 50/60Hz Cooling: Advanced Fan Cooled. Dimension: 483Wx177Hx445Dmm
3316~3318 is an ideal testing Solution for DC Power source, such as SMPS, Battery.
Each Unit has its own control and display panel, the five states Memory function is suitable for Production and Quality Control, The suffix D,E,F is a high power version of load unit.
Optional Disable SHORT Key function is available.
BNC-Clip Cable 1 pc BNC-BNC Cable 1 pcs Hook terminal 2 pcs Operation Manual 1 pc
AC / DC , DC / DC, Testing
