PFC output loading test AC / DC , DC / DC , DC /AC testing 50-400Hz Power Transformer Telephone PABX Ring Signal (15-25Hz) Can be Paralleled more units for higher power R&D, QC, and ATE system
CC, CR, Crest Factor Mode Dual 4 1/2 Meter Display Last Setting Memory Five Memory Threshold Upper/Lower limit capability Protections against V, I, W, and °C
AC Power: 115V/230 Vac ± 10% 50/60Hz Cooling: Advanced Fan Cooled Weight: 3254: 18.5 Kg. 3255: 21.5 Kg. Dimension: 483Wx177Hx445Dmm
1 Meter GPIB Cable 2 Meter GPIB Cable

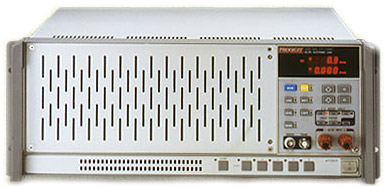

3254 , 3255 is a 500V high voltage AC and DC Load in one unit, it provides an ideal testing solution for Power Factor Correction, Power Transformer and other AC/DC source.
Each 3254 , 3255 has its own control and display panel, with five states Memory controls and GO/NG check function.
AC Power Cord 1 pc Vsense cable 1pc Banana Plug 2pcs Lug/Hook terminal 2pcs Operation Manual 1pc
